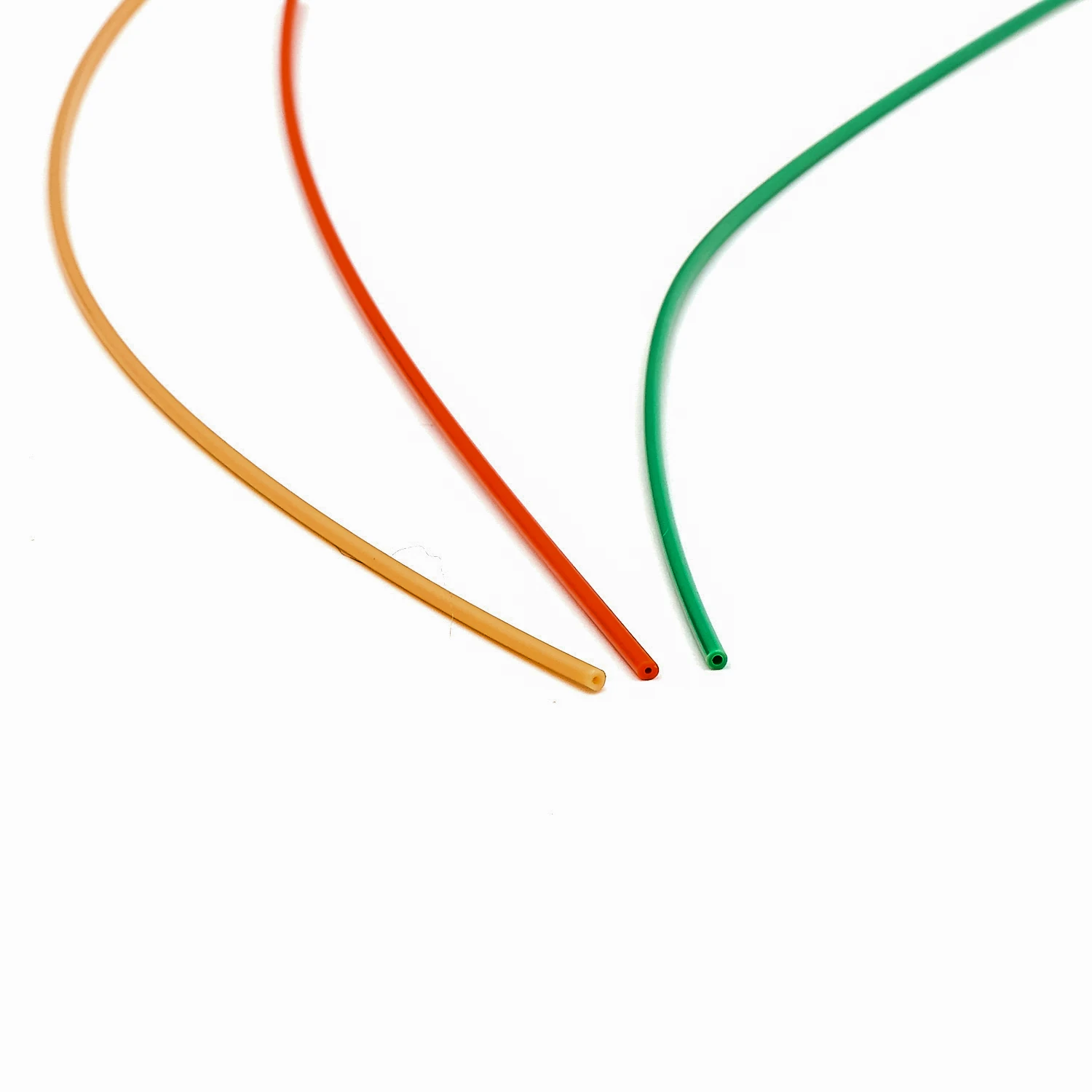

FOREACH PEEK Polyether ether ketone tubing, ID options 0.2 / 0.8 mm
FOREACH polyether ether ketone (PEEK) tubing provides small-bore options for analytical instrument connections. Compare the listed models around the fluid, target flow, line length and fitting requirements.

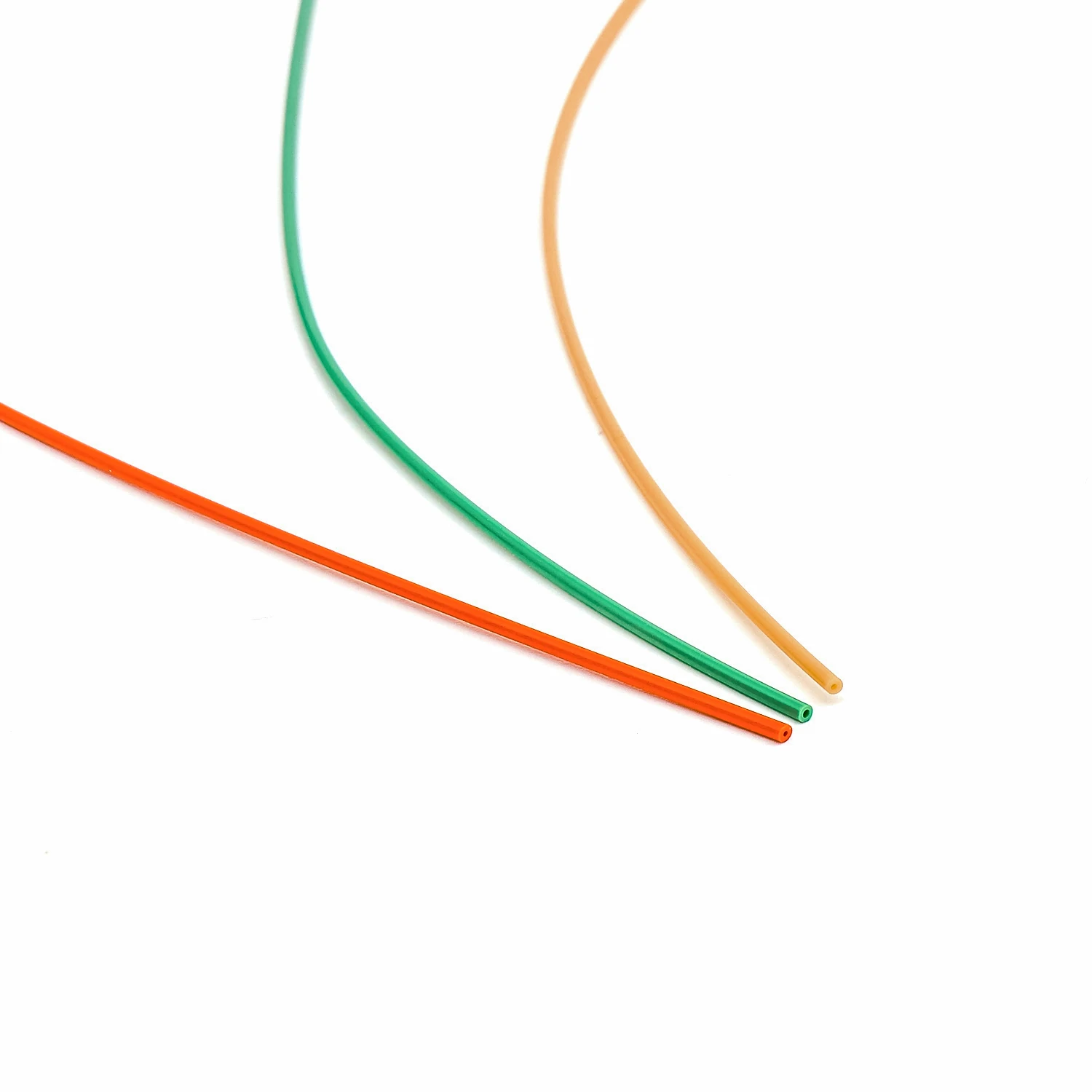

The current catalogue contains two ID × OD combinations: 0.2 × 0.8 mm and 0.8 × 1.6 mm, each with its own model and product code. Select one of these actual combinations rather than mixing the listed IDs and ODs independently.
For small-bore paths, review pressure drop, internal volume, solvent compatibility and routing. High-pressure applications require operating data for the selected tubing size; a fitting pressure rating is not a tubing pressure rating.
Typical Applications:
Small-bore analytical instrument connections, Material evaluation for sample and reagent paths, Evaluation for fluid connections requiring polymer tubing
| Density (g/cm³) | 1.32 |
|---|---|
| Tensile Strength (MPa) | 180 |
| Flexural Strength (MPa) | 265 (ASTM D790) |
| Dielectric Strength (kV/mm) | 24 |
| Water Absorption (%) | 0.2 (ISO 62) |
| Operating Temperature (℃) | -180~225 |
| Coefficient of Thermal Expansion (cm/cm/°C) | 4.5X10⁻⁵ |
| Melting Temperature (°C) | 343 |
Tubing Selection and Connections
Selection Considerations
Two listed ID × OD combinations
Evaluate pressure drop and internal volume for small-bore paths
Confirm pressure and solvent conditions by specification
Application Evaluation
Small-bore analytical instrument connections
Material evaluation for sample and reagent paths
Evaluation for fluid connections requiring polymer tubing
Fitting Compatibility

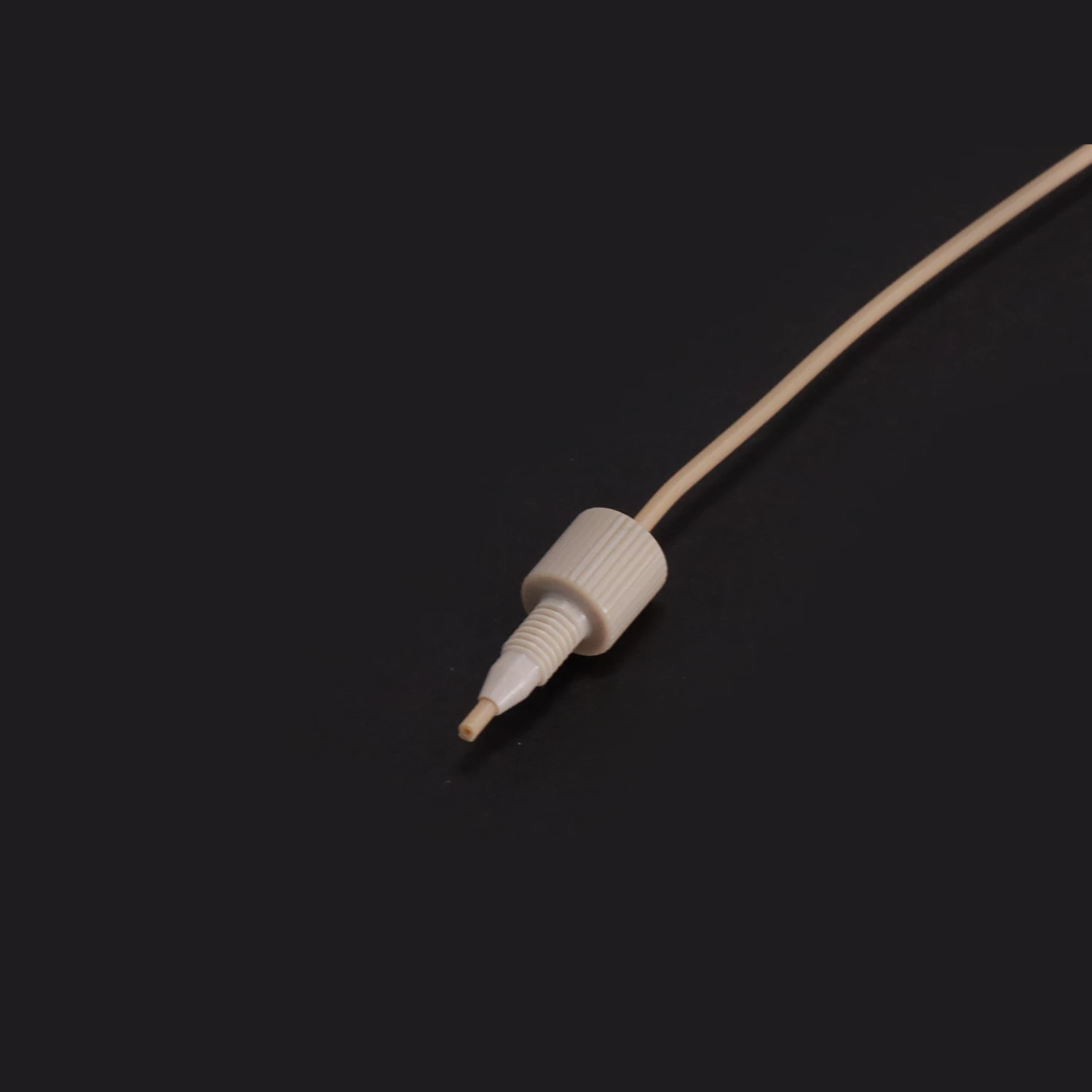

Match 0.8 mm and 1.6 mm OD tubing to the specified fitting or sleeve. Identical port threads do not establish interchangeable tube sizes. Confirm whether the fitting accepts 1.6 mm tubing or 1/16 in tubing, which is 1.5875 mm, within its permitted tolerances.
No 2D Drawing
Datasheet not yet available
The datasheet for this product has not been uploaded yet.
Frequently Asked Questions
PEEK is common in analytical systems, but these sizes still require model-specific pressure, temperature and connection data. The material name alone does not qualify the assembly.
Need to confirm your PEEK tubing specification?
Share the fluid and concentration, ID/OD, length, temperature, pressure or vacuum, fittings and routing requirements so Foreach can help review the PEEK tubing and connection options.
