Does Q4005-SMV-SACN have a shut-off or non-shut-off design?

This model has a shut-off design. Shut-off versions close the fluidic path when disconnected, while non-shut-off versions leave the path open.

Q40female endStraightshut-offQuick-Connect Fittingwhethersupports bulkhead mounting?

This model supports bulkhead mounting for ports arranged on equipment panels, housings, or fixed brackets.

Is POM compatible with the target fluid?

Confirm compatibility based on the conveyed fluid, operating temperature, pressure, cleaning requirements, and seal material. If compatibility is uncertain, submit the operating conditions for engineering review.

Q4005-SMV-SACNwhether 2D drawing?

Add the current model to your list and request a drawing; our engineers will verify the product code and document revision before providing it.

Q4005-SMV-SACN

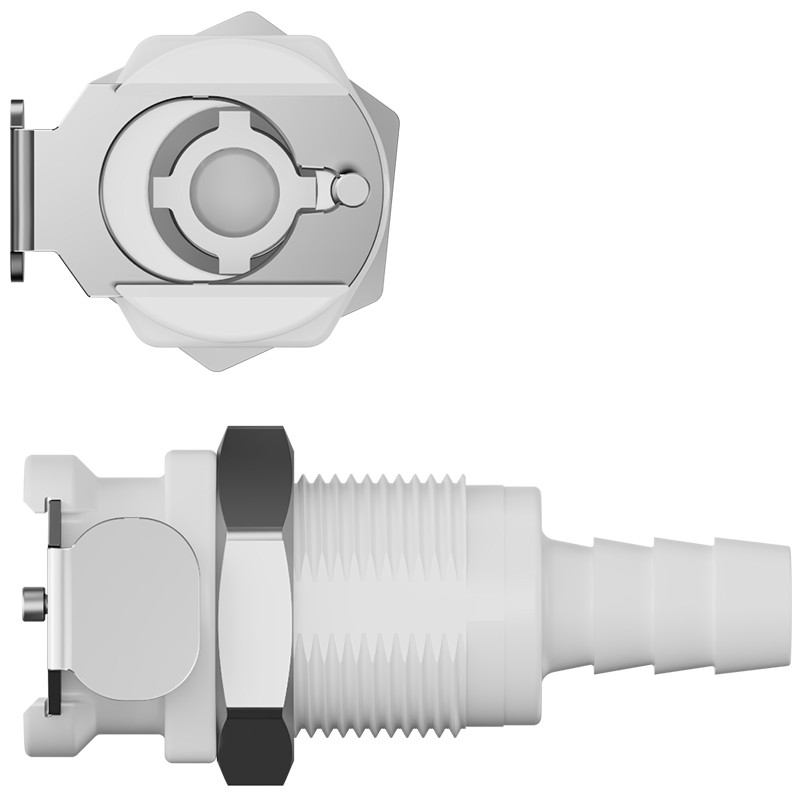

Q4005-SMV-SACN is a Q40female straight shut-off quick-connect fitting, uses 05Threaded Port, uses POM and NBR ring, supports. is suitable for requiresquick-disconnect fluidic connections in equipment, fitting.

Typical Applications:

IVD internal equipment fluidic paths, analytical-instrument fluidic modules, equipment interface, connection

Model:Q4005-SMV-SACN.

Model	Q4005-SMV-SACN
Product Code	849025
Product Category	Quick-Connect Fitting
Product Series	Q40
Thread Size	05
Male/Female End	Female End
Mounting Method	Bulkhead
Valve Configuration	Valved
Shape	Straight
Housing Material	POM
Seal Material	NBR

2D Drawing Not Available Yet

To request a 2D drawing for this product, please click “Add Drawing” above.

Datasheet not yet available

The datasheet for this product has not been uploaded yet.

Frequently Asked Questions

compatible with 05Threaded Port. requires confirm female end, and equipment mounting method.

Fittings for volume orders and custom applications

Foreach can support fitting selection, volume supply, and customization based on port type, tube size, material, sealing element, mounting structure, and application conditions.
