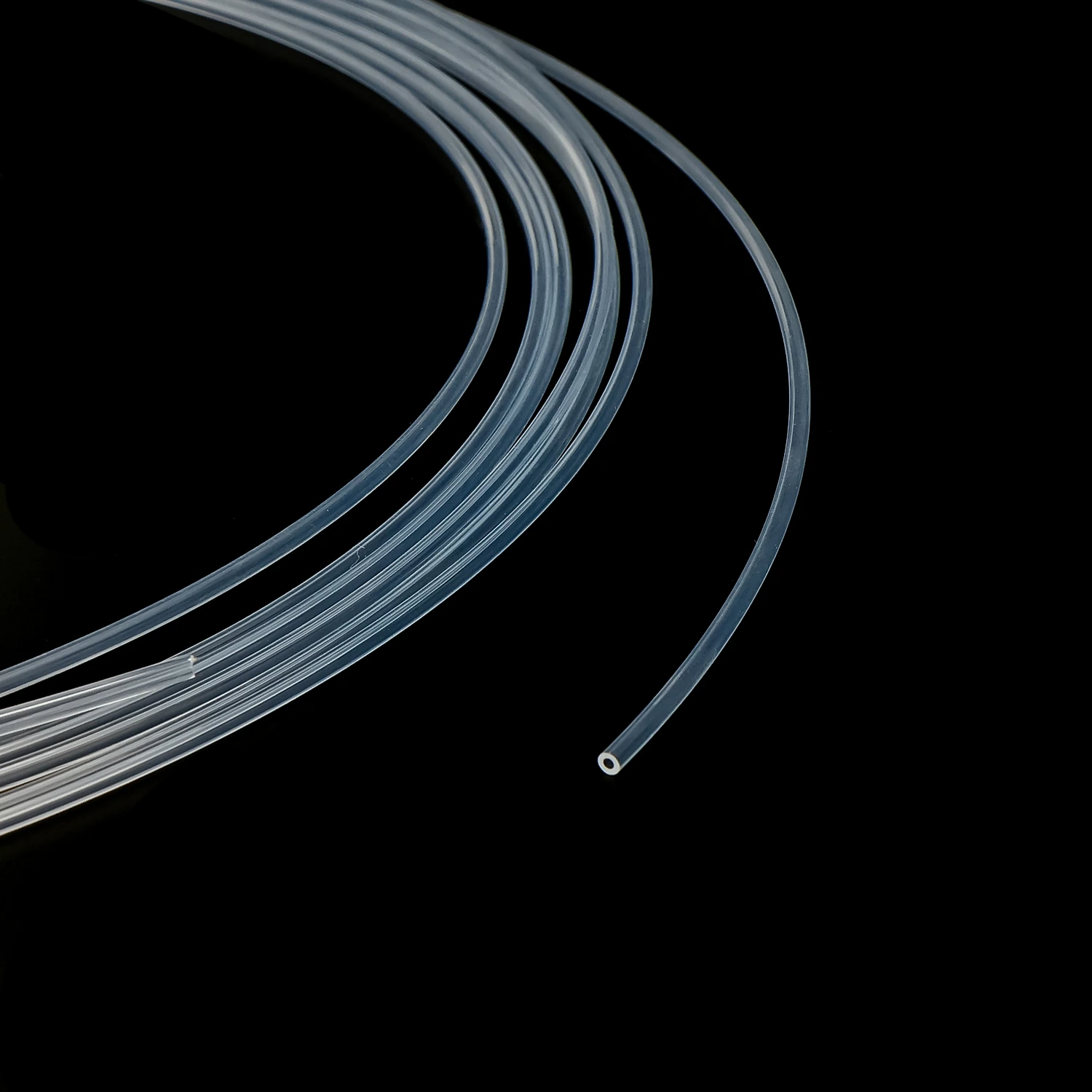

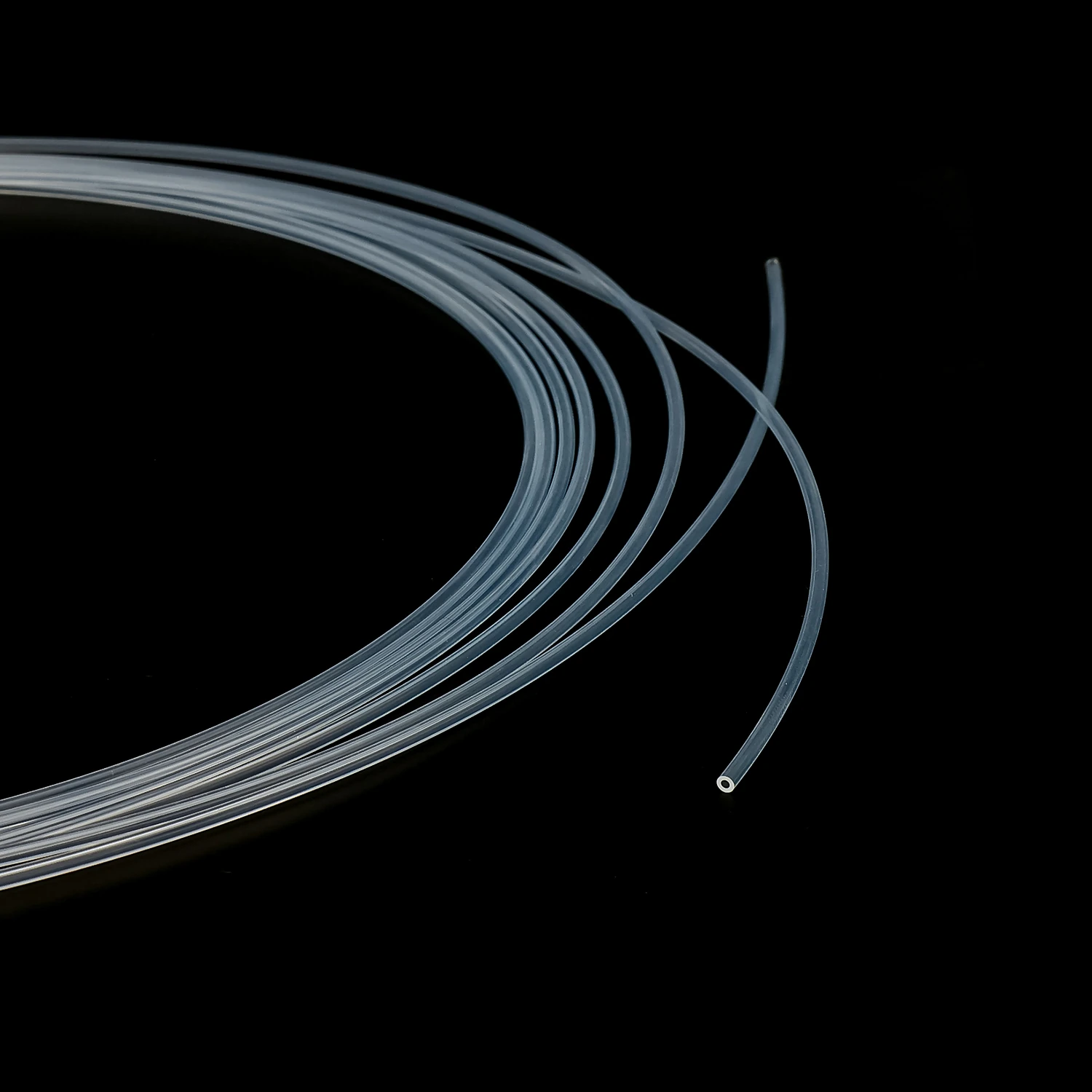

FOREACH PTFE Polytetrafluoroethylene tubing, ID 0.5–4.0 mm
FOREACH polytetrafluoroethylene (PTFE) tubing provides a fluoropolymer option for chemically demanding instrument fluid paths. Compare the listed models against the fluid, temperature, pressure and end-connection requirements before confirming suitability.

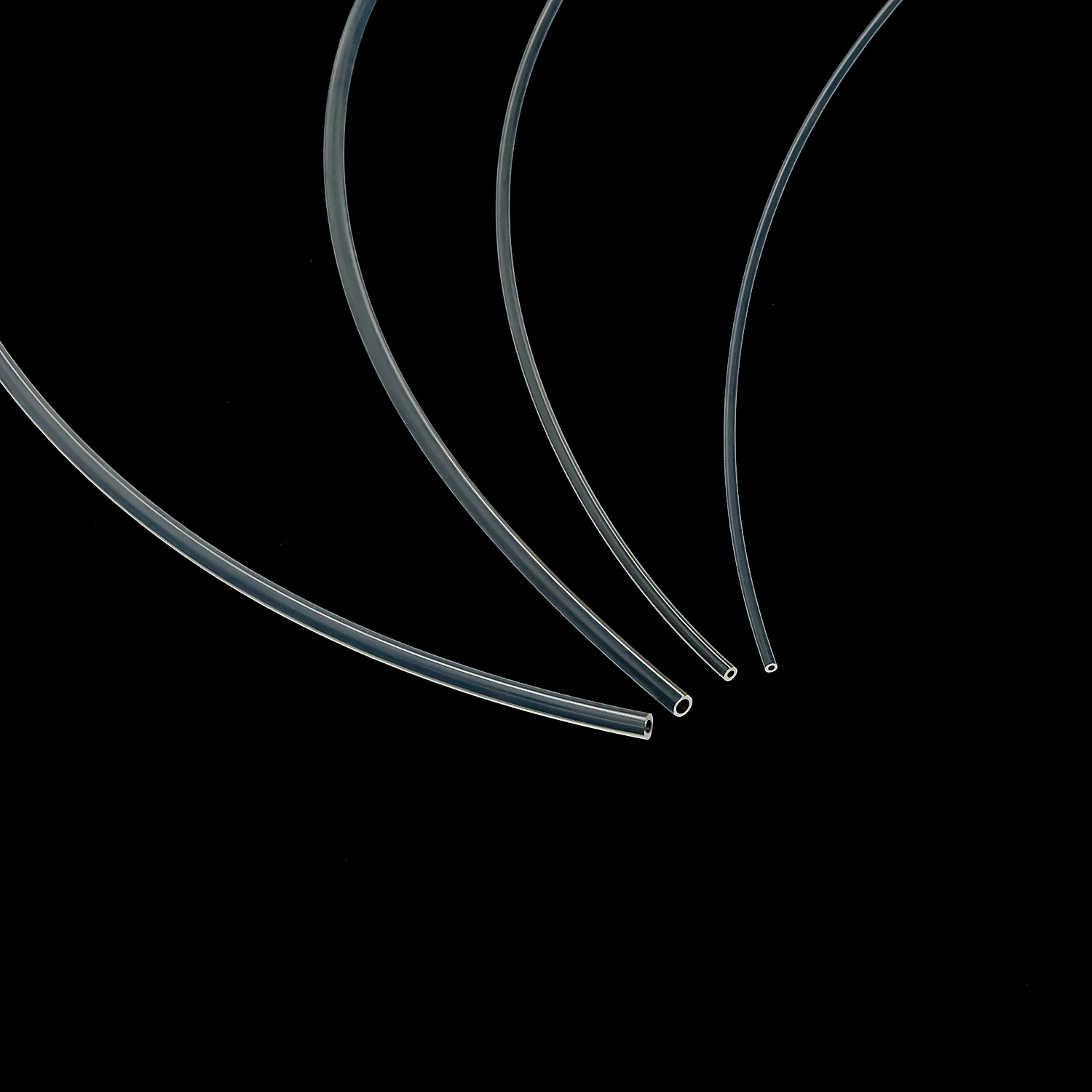

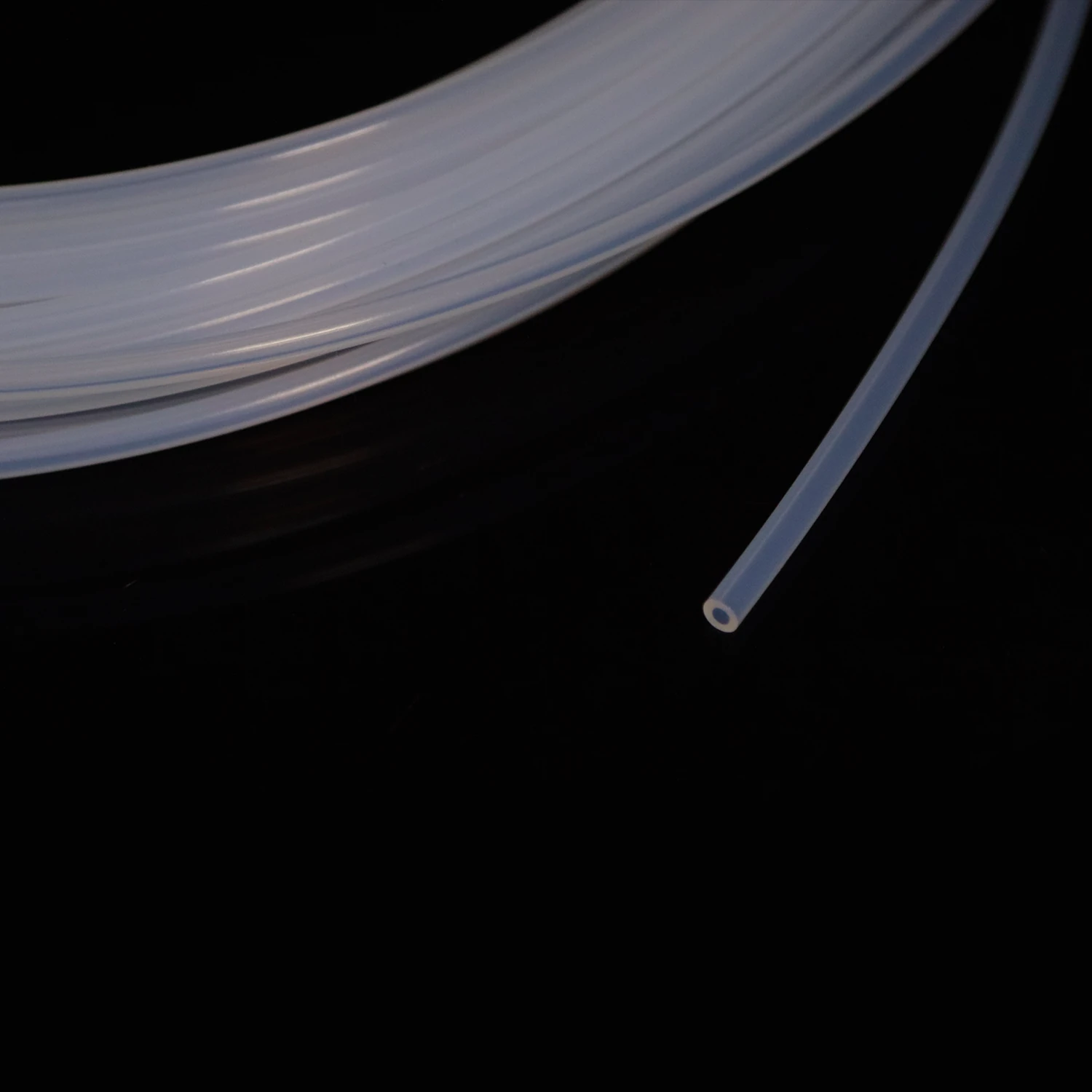

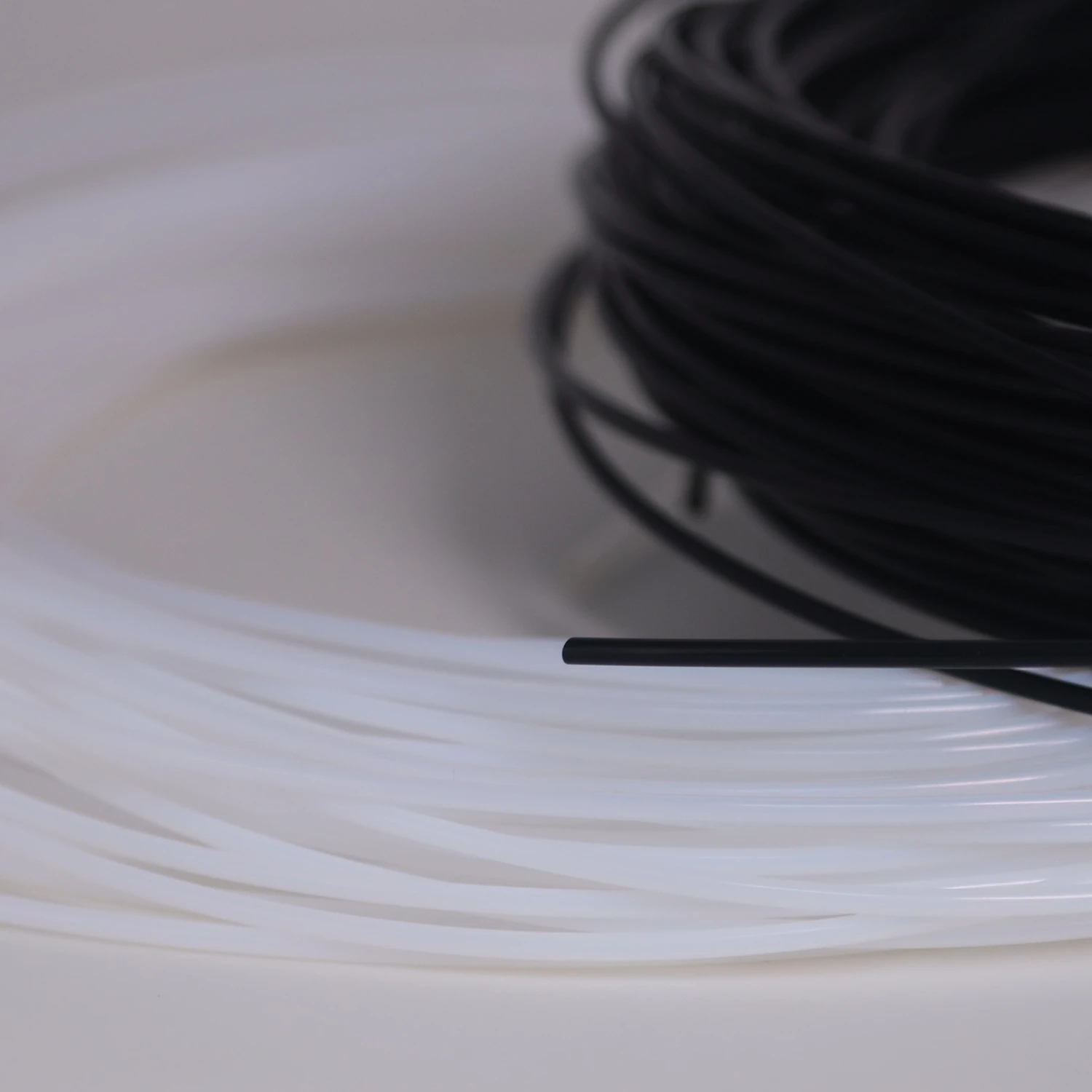

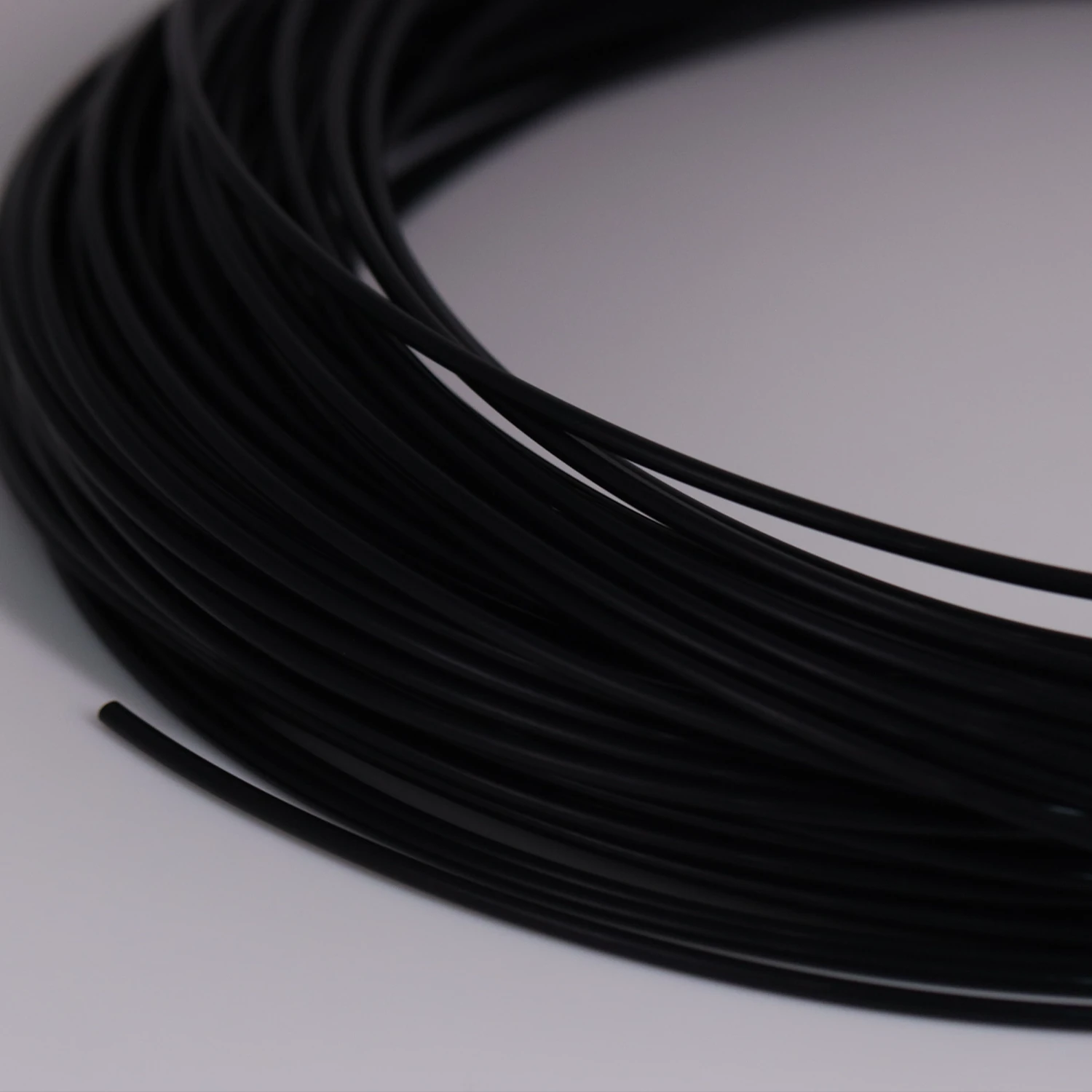

The current catalogue lists IDs of 0.5–4 mm and ODs of 1.6–6 mm, including TH1 and TH2 models with corresponding color options. A size can match more than one model; confirm the actual ID/OD combination, series, color and product code.
Check packaging, line length, wall thickness and connection method. Tubing, gaskets and sealing geometry jointly determine the behavior of the complete fluid line. Match pressure or vacuum conditions to the selected dimensions and assembled connection.
Typical Applications:

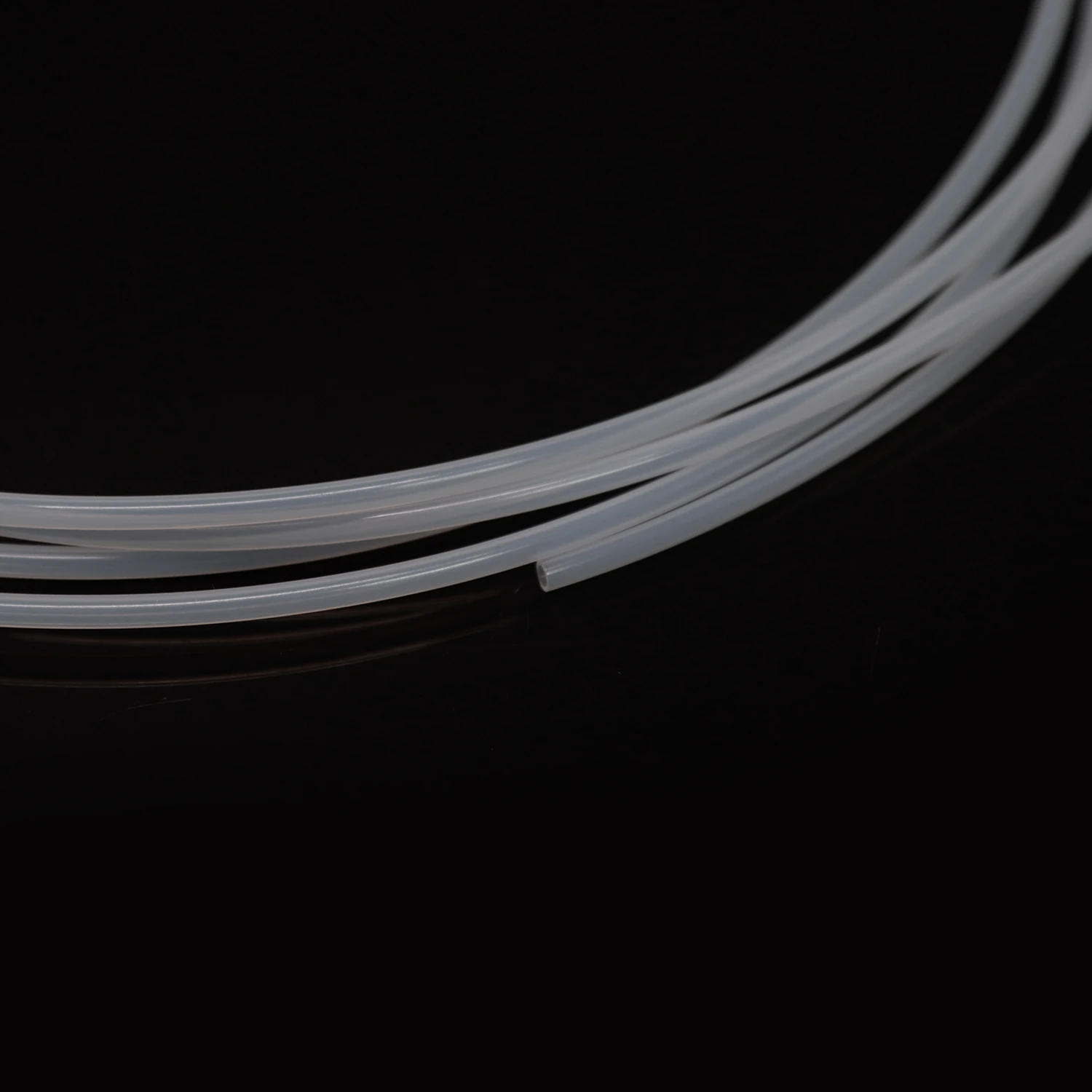

Material evaluation for chemically demanding paths, Instrument reagent and wash connections, Fluid connections confirmed for the operating conditions
| Density (g/cm³) | 2.2 |
|---|---|
| Tensile Strength (MPa) | 27.6 |
| Flexural Strength (MPa) | 174 (ASTM D790) |
| Dielectric Strength (kV/mm) | 2.1 (IEC60243-1) |
| Water Absorption (%) | 0.05 (ASTM D570) |
| Hardness (Shore D) | 50, 65 |
| Operating Temperature (℃) | -101~260 |
| Coefficient of Thermal Expansion (cm/cm/°C) | 1.2X10⁻⁵ |
| Melting Temperature (°C) | 327 |
Tubing Selection and Connections
Selection Considerations
Select the listed ID, OD and color combination
Identify the configuration by model and product code
Review series, color and packaging together
Application Evaluation
Material evaluation for chemically demanding paths
Instrument reagent and wash connections
Fluid connections confirmed for the operating conditions
Fitting Compatibility
Confirm compression or flat-bottom fittings using OD, tolerance, port geometry and fitting specifications. Evaluate retention, sealing and behavior under sustained loading. Where fluid visibility is needed, check the actual appearance instead of assuming all listed colors provide transparency.
No 2D Drawing
Datasheet not yet available
The datasheet for this product has not been uploaded yet.
Frequently Asked Questions
Share the required dimensions, color, packaging and operating conditions with Foreach to confirm the series configuration. Specify any required tolerances or material grade.
Need to confirm your PTFE tubing specification?
Share the fluid and concentration, ID/OD, length, temperature, pressure or vacuum, fittings and routing requirements so Foreach can help review the PTFE tubing and connection options.
