Q60 quick-connect fitting how to select male and female ends?

male end and female end requires compatible connection. confirm equipment and Tubing connection, interface, and mounting method.

What is the difference between shut-off and non-shut-off versions?

shut-off fitting, is suitable for requires; non-shut-off structure, and.

Which mounting method is suitable for 穿板型号?

is suitable for equipment, fixed; is used for Tubing connection.

What body configurations are available in the Q60 series?

L-Shaped, straight structure, optional.

How can I obtain a 2D drawing or 3D model for a specific model?

quick-connect fitting, 3D model. different different.

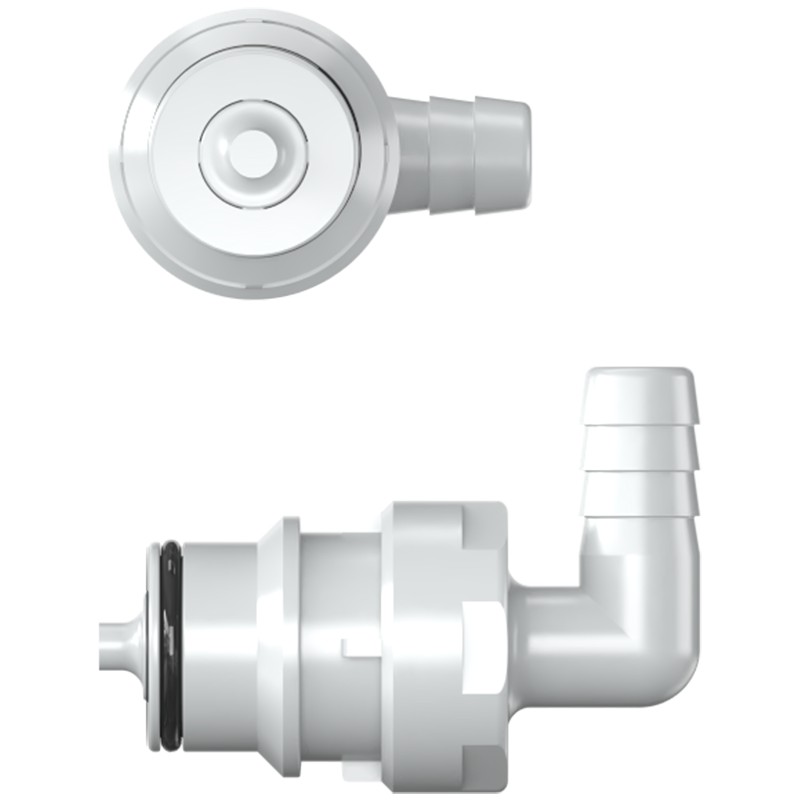

Q60 quick-connect fitting

Q60 quick-connect fitting 31, tubing port Threaded Port, male end female end, shut-off non-shut-off, and different and material. users can be configured according to interface, equipment installation space and.

Typical Applications:

microfluidic paths, IVD equipment, instrument, Laboratory Automation

Model:Q60 ｜31

Specification	31
Tube ID or Thread	9.5 mm, 12.7 mm, 19.0 mm, 1/2"-14 NPT, 3/8"-18 NPT
Male/Female End	male end, female end
Mounting Method	,
Valve Configuration	shut-off, non-shut-off
Shape	L-Shaped, Straight
Housing Material	PP
Seal Material	EPDM
2D Drawing	31
3D model	31

2D Drawing Not Available Yet

To request a 2D drawing for this product, please click “Add Drawing” above.

Datasheet not yet available

The datasheet for this product has not been uploaded yet.

Q60

31.,.

Foreach Model	Product Code	Tube ID or Thread	Gender	Mounting Method	Valve Configuration	Shape	Housing Material
Q6006-PNV-LPPE.	869032.	9.5 mm.	Male End	Non-Bulkhead	Valved	L-Shaped	PP.
Q6006-PNX-LPPE.	869012.	9.5 mm.	Male End	Non-Bulkhead	Non-Valved	L-Shaped	PP.
Q6006-SMV-LPPE.	869020.	9.5 mm.	Female End	Bulkhead	Valved	L-Shaped	PP.
Q6006-SMV-SPPE.	869026.	9.5 mm.	Female End	Bulkhead	Valved	straight	PP.
Q6006-SMX-LPPE.	869018.	9.5 mm.	Female End	Bulkhead	Non-Valved	L-Shaped	PP.
Q6006-SMX-SPPE.	869006.	9.5 mm.	Female End	Bulkhead	Non-Valved	straight	PP.
Q6006-SNV-SPPE.	869021.	9.5 mm.	Female End	Non-Bulkhead	Valved	straight	PP.
Q6006-SNX-SPPE.	869001.	9.5 mm.	Female End	Non-Bulkhead	Non-Valved	straight	PP.
Q6008-PNV-LPPE.	869033.	12.7 mm.	Male End	Non-Bulkhead	Valved	L-Shaped	PP.
Q6008-PNV-SPPE.	869030.	12.7 mm.	Male End	Non-Bulkhead	Valved	straight	PP.
Q6008-PNX-LPPE.	869013.	12.7 mm.	Male End	Non-Bulkhead	Non-Valved	L-Shaped	PP.
Q6008-PNX-SPPE.	869010.	12.7 mm.	Male End	Non-Bulkhead	Non-Valved	straight	PP.
Q6008-SMV-LPPE.	869036.	12.7 mm.	Female End	Bulkhead	Valved	L-Shaped	PP.
Q6008-SMV-SPPE.	869027.	12.7 mm.	Female End	Bulkhead	Valved	straight	PP.
Q6008-SMX-LPPE.	869019.	12.7 mm.	Female End	Bulkhead	Non-Valved	L-Shaped	PP.
Q6008-SMX-SPPE.	869007.	12.7 mm.	Female End	Bulkhead	Non-Valved	straight	PP.
Q6008-SNV-LPPE.	869041.	12.7 mm.	Female End	Non-Bulkhead	Valved	L-Shaped	PP.
Q6008-SNV-SPPE.	869022.	12.7 mm.	Female End	Non-Bulkhead	Valved	straight	PP.
Q6008-SNX-SPPE.	869002.	12.7 mm.	Female End	Non-Bulkhead	Non-Valved	straight	PP.
Q6012-PNV-SPPE.	869031.	19.0 mm.	Male End	Non-Bulkhead	Valved	straight	PP.
Q6012-PNX-SPPE.	869011.	19.0 mm.	Male End	Non-Bulkhead	Non-Valved	straight	PP.
Q6012-SMV-SPPE.	869028.	19.0 mm.	Female End	Bulkhead	Valved	straight	PP.
Q6012-SMX-SPPE.	869008.	19.0 mm.	Female End	Bulkhead	Non-Valved	straight	PP.
Q6012-SNV-SPPE.	869023.	19.0 mm.	Female End	Non-Bulkhead	Valved	straight	PP.
Q6012-SNX-SPPE.	869003.	19.0 mm.	Female End	Non-Bulkhead	Non-Valved	straight	PP.
Q6012N-PNV-SPPE.	869035.	1/2"-14 NPT.	Male End	Non-Bulkhead	Valved	straight	PP.
Q6012N-PNX-SPPE.	869015.	1/2"-14 NPT.	Male End	Non-Bulkhead	Non-Valved	straight	PP.
Q6038N-PNV-SPPE.	869034.	3/8"-18 NPT.	Male End	Non-Bulkhead	Valved	straight	PP.
Q6038N-PNX-SPPE.	869014.	3/8"-18 NPT.	Male End	Non-Bulkhead	Non-Valved	straight	PP.
Q6038N-SNV-SPPE.	869024.	3/8"-18 NPT.	Female End	Non-Bulkhead	Valved	straight	PP.
Q6038N-SNX-SPPE.	869004.	3/8"-18 NPT.	Female End	Non-Bulkhead	Non-Valved	straight	PP.
