FEP Retaining-Ring Tubing Assembly
FOREACH FEP retaining-ring tubing assemblies combine transparent FEP tubing, matching fittings, retaining sleeves and sealing washers for reagent, cleaning-fluid and internal instrument connections in in-vitro diagnostic (IVD) and automated analytical instruments. Available tubing IDs span 0.3–2.0 mm, with ODs of 1.6, 2.0, 2.5, 3.0 and 3.2 mm in specified pairs. Tube length and A/B end connections can be specified.

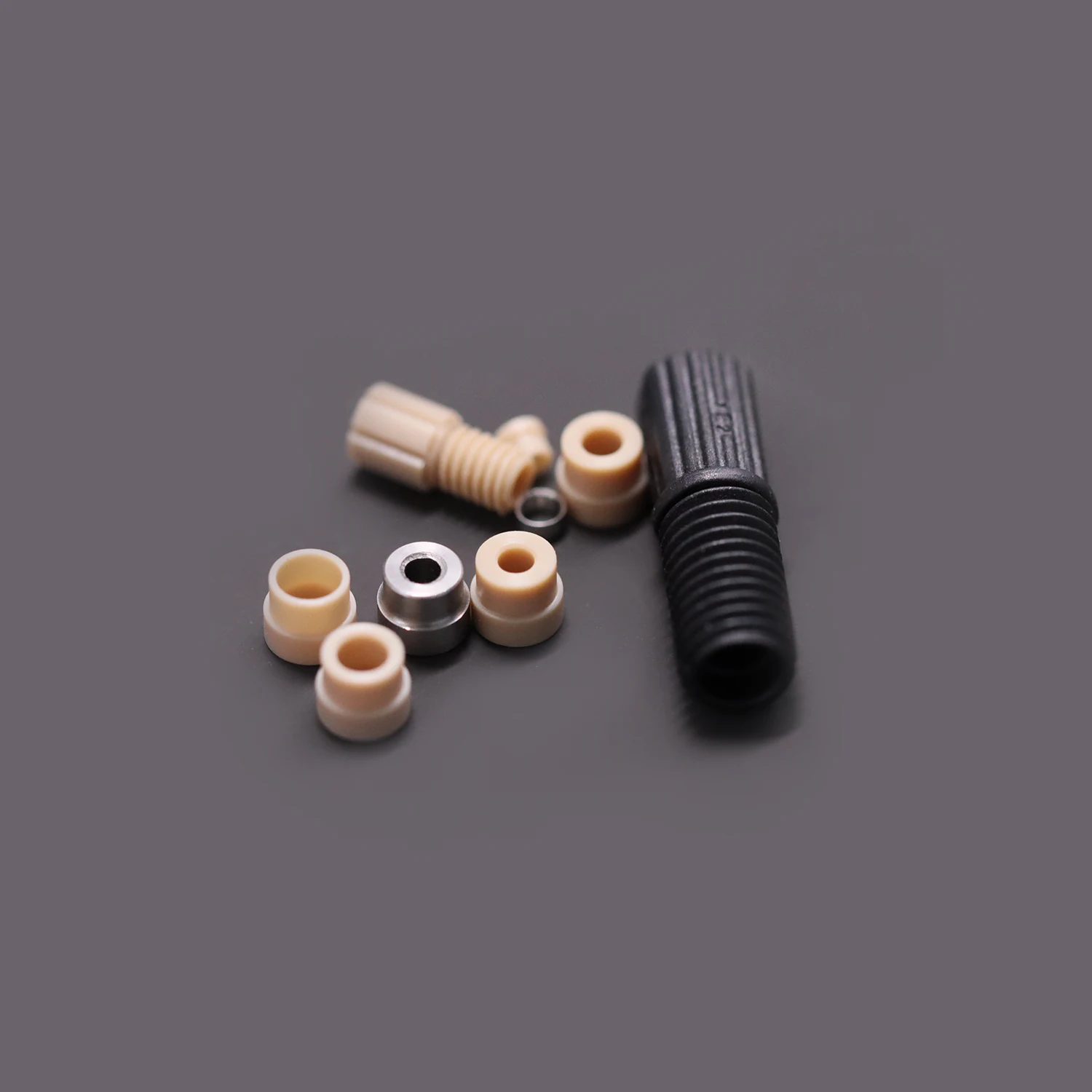

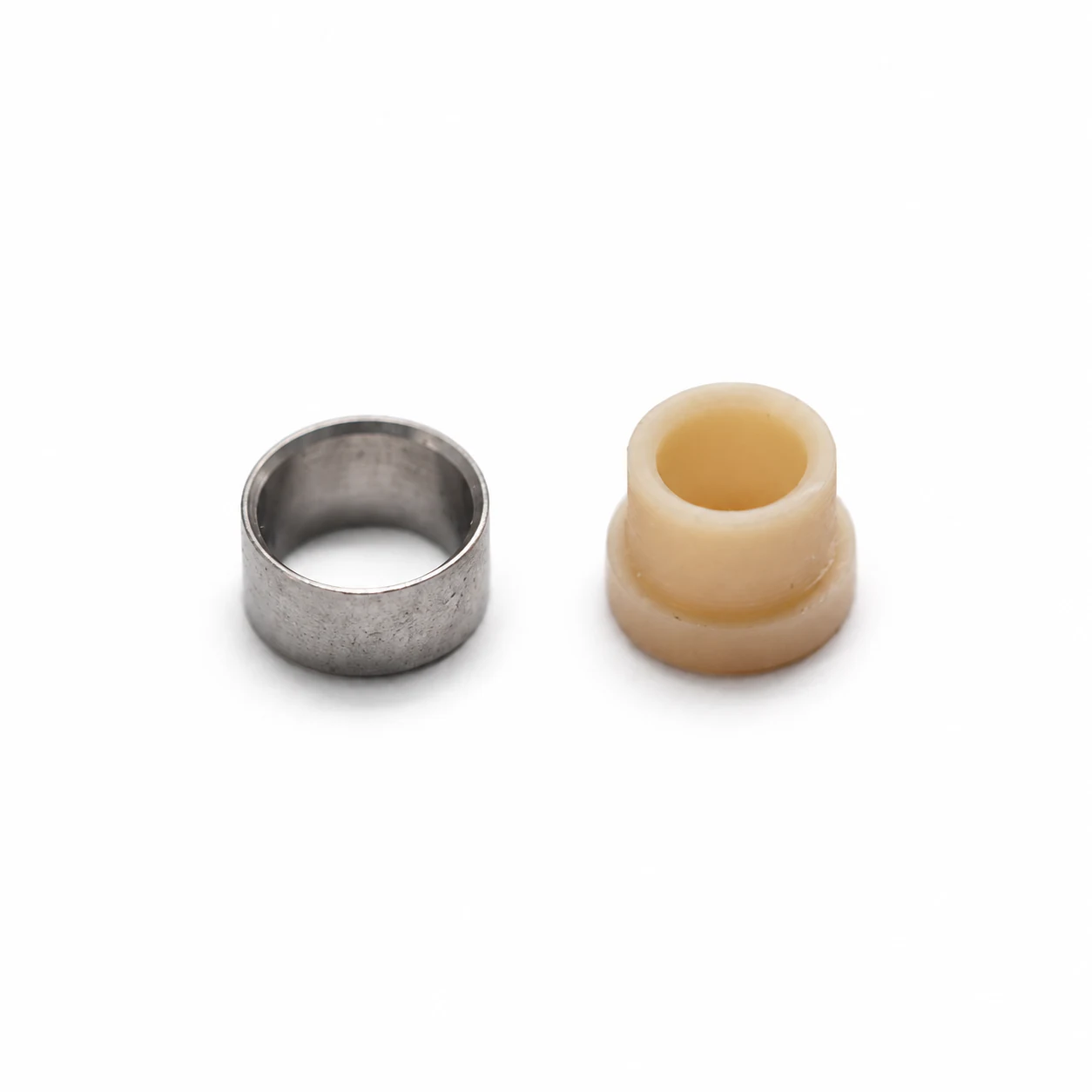

The retaining sleeve and sealing washer secure and seal the tube end. The 6-40 UNF configuration uses a PEEK fitting for 1.6 mm OD tubing; HSF6 provides M6×1 and 1/4-28 UNF threads with tube OD selected by model. SUS and PEEK sleeve and washer components are matched by model. Stop tubes and identification can be specified. Equipment development, samples to drawing and batch assembly are supported. Confirm working pressure and temperature for the specific dimensions, ports and complete assembly.
FOREACH holds ISO 9001 and ISO 13485 quality management system certifications.
Typical Applications:
Reagent line connections, Cleaning-fluid line connections, Retaining-ring end connections, Internal instrument fluid-path assembly
Assembly Parameters
| Tubing material and appearance | Transparent FEP |
|---|---|
| Connection structure | Retaining sleeve and sealing washer |
| Matching fittings | HSF6 fittings, 6-40 UNF miniature fittings |
| Fitting material | PPS, PEEK; selected by series |
| Standard threads | M6×1, 1/4-28 UNF (HSF6 configuration) |

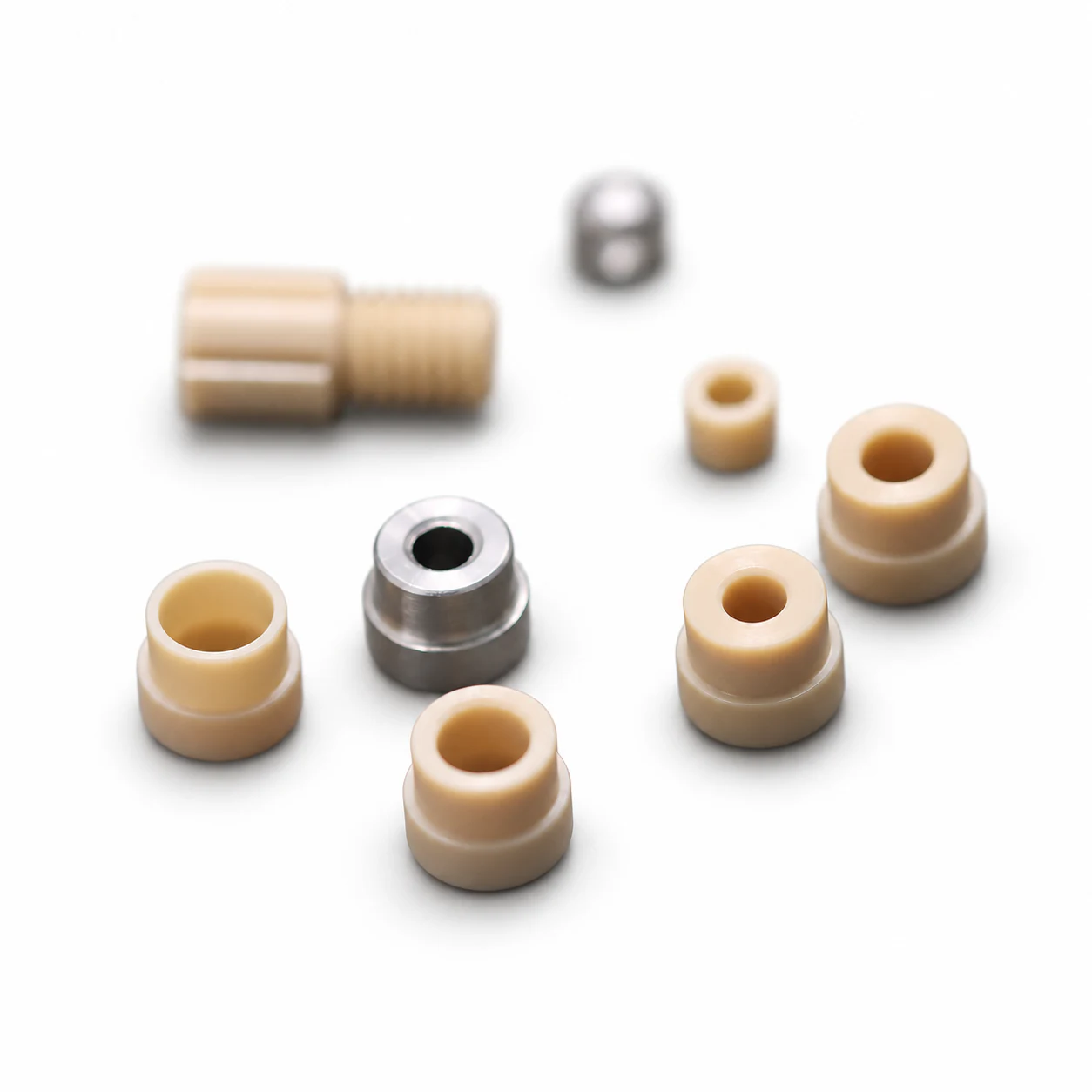

| Retaining-ring kit | SUS and PEEK components matched to the kit model |
| Finished length | Custom to drawing, with specified length and tolerance |
| A/B ends | Fitting material, thread and connection type can be specified separately |
| Optional configurations | Stop tubes, heat-shrink labels |
Tube Size Combinations
| Tube OD (mm) | Matching Tube ID (mm) |
|---|---|
| 1.6 | 0.3 / 0.5 / 0.8 / 1.0 |
| 2.0 | 1.0 |
| 2.5 | 1.5 |
| 3.0 | 2.0 |
| 3.2 | 1.6 |
These are available tubing sizes. Confirm end dimensions and mating ports against the assembly drawing.
Match fitting material, structure and thread to the corresponding model.

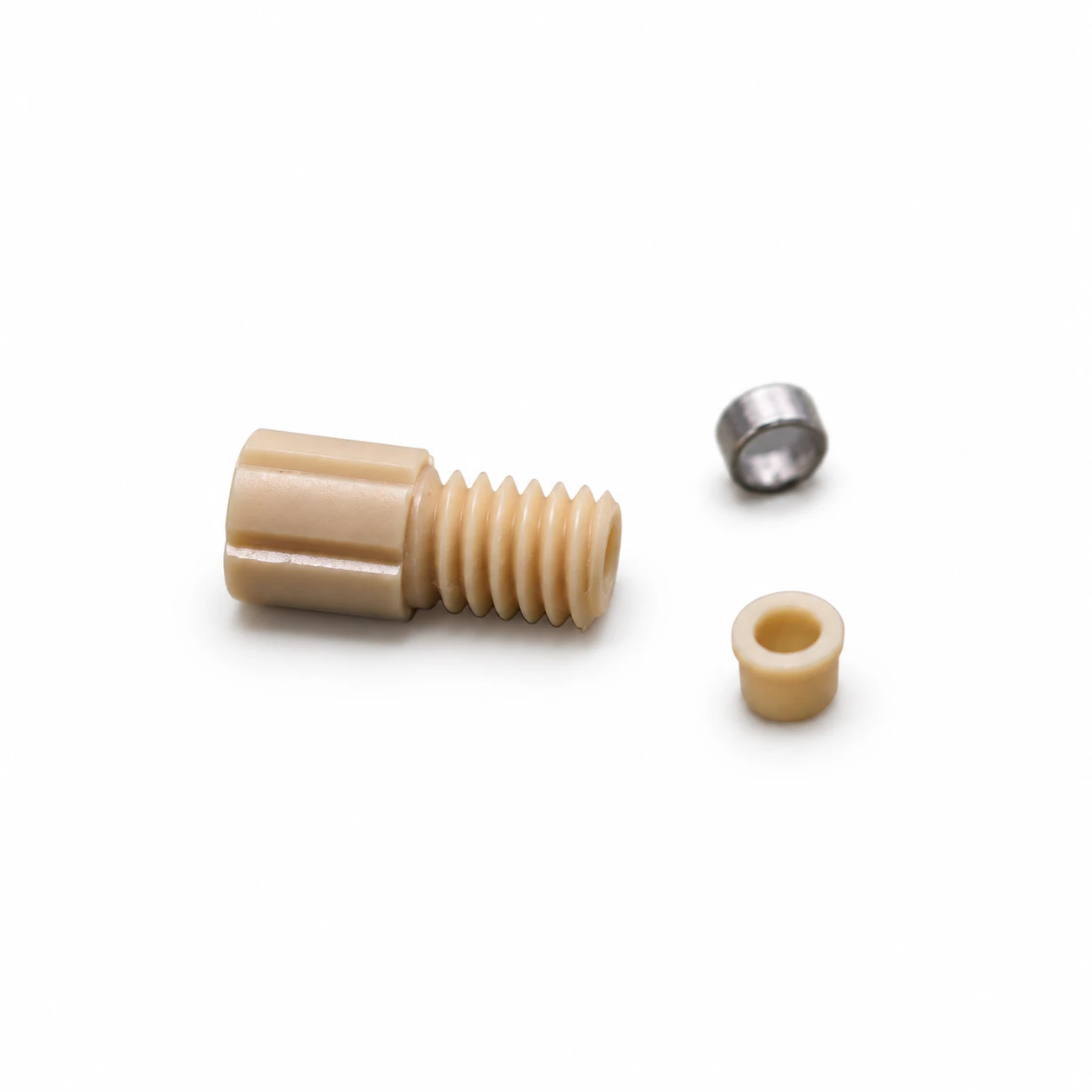

Miniature option: 6-40 UNF, PEEK fitting, 1.6 mm tube OD. Confirm the complete end configuration against the selected model.
Working pressure and temperature must be confirmed for the specific assembly configuration.
FEP Retaining-Ring Tubing Applications & Customization
Equipment development, assembly to drawing, sample development and batch production are supported.
Instrument fluid-path integration
Assemblies for in-vitro diagnostic and automated analytical instruments are selected against the actual reagent, cleaning fluid and connection requirements.
FEP tubing and custom length
Transparent FEP tubing can connect reagent, cleaning-fluid and sample-related fluid paths in instruments. Where liquid or bubble visibility is needed, assess visibility using the actual tube wall and sample.
Assembly drawings and dimensions
Provide tube ID/OD, finished length and tolerance, length measurement datum, A/B port drawings, fitting materials, threads and installation space. Show stop and label positions and dimensions on the assembly drawing.
Fluids, pressure and temperature
Specify the working fluid, concentration, cleaning fluid, contact time, pressure, temperature and inspection requirements to confirm wetted materials and the complete assembly.
Installation and mating ports
Install the sleeve and sealing washer in the specified sequence and orientation using the designated tools. Confirm tube OD, retaining-ring kit and port as a matched connection.
Quality documents and delivery
FOREACH holds ISO 9001 and ISO 13485 quality management system certifications. Applicable REACH and RoHS reports and material safety data sheets (MSDS) can be supplied for relevant connection components according to material and model. Dimensional inspection, seal testing, identification and packaging requirements for samples and batches are agreed for each project.
Submit your requirements
Prepare an assembly drawing, port drawing or BOM, together with sample quantity, batch requirements and acceptance criteria.
Use the fluid resistance calculator for preliminary estimates when comparing how tube diameter or length affects pressure drop.
Estimate fluid resistance2D Drawing Not Available Yet
To request a 2D drawing for this product, please click “Add Drawing” above.
Frequently Asked Questions
Transparent FEP tubing allows visual observation of liquid and bubbles. Visibility depends on the tube wall, ID and liquid colour; check a sample with the actual liquid.
Submit your requirements
Prepare an assembly drawing, port drawing or BOM, together with sample quantity, batch requirements and acceptance criteria.
