FOREACH PVC Polyvinyl chloride tubing, ID 0.8–19.1 mm, 55A / 65A hardness options
FOREACH flexible polyvinyl chloride (PVC) tubing provides options for instrument gas/liquid connections and wash or drain lines. Select the PVC formulation and model around routing space, flexibility, port design and fluid conditions.

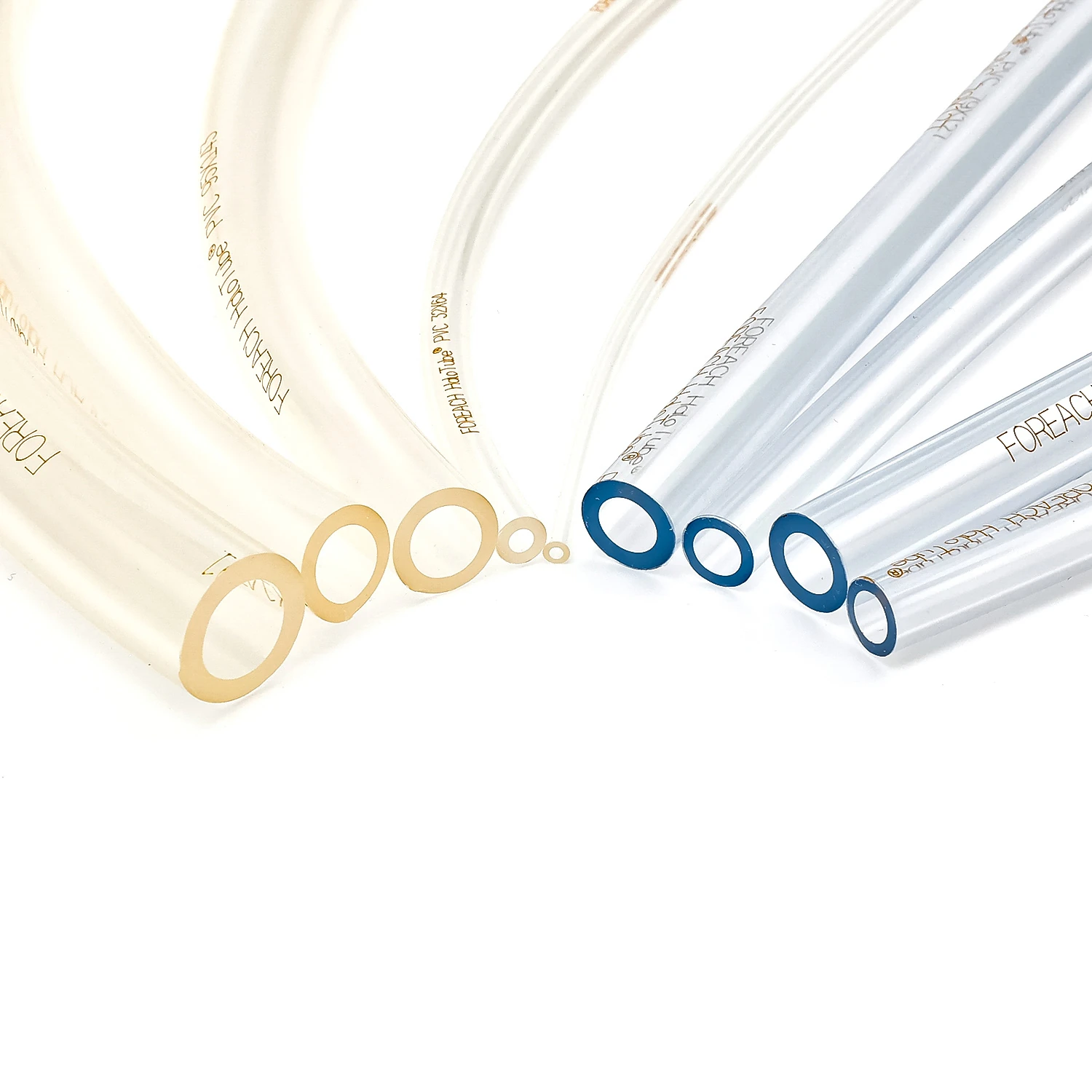

The current catalogue lists IDs of 0.8–19.1 mm, ODs of 2.4–25.4 mm and 55A or 65A hardness configurations. Choose an actual listed ID/OD combination; models with the same ID can have different wall thicknesses. Check the product code and roll length for the selected model.
For sample, reagent or wash-fluid paths, evaluate compatibility with the specific PVC formulation. Where adsorption, extractables or carryover affect the workflow, assess the material and cleaning process under intended conditions. Match dimensions, hardness and retention to the connection and system pressure or vacuum.
Typical Applications:
Flexible connections inside instruments, Wash and drain lines after compatibility review, Material evaluation for sample or reagent paths
| Density (g/cm³) | 1.18 |
|---|---|
| Tensile Strength (MPa) | 14.3 |
| Flexural Strength (MPa) | 68 |
| Dielectric Strength (kV/mm) | 4 |
| Water Absorption (%) | 0.12 |
| Operating Temperature (℃) | -42~75 |
| Coefficient of Thermal Expansion (cm/cm/°C) | 6X10⁻⁵ |
| Melting Temperature (°C) | 185 |
| Low-Temperature Brittleness (°C) | -46 |
| Hardness (Shore A) | 55, 65 |
Tubing Selection and Connections
Selection Considerations
Select by hardness and ID/OD
Compare wall thickness when models share the same ID
Check the roll length for each model
Application Evaluation
Flexible connections inside instruments
Wash and drain lines after compatibility review
Material evaluation for sample or reagent paths
Fitting Compatibility
For barbed connections, confirm ID, hardness, wall thickness and retention. For push-in connections, confirm OD, tolerance and the fitting manufacturer’s tubing requirements. Evaluate sealing and retention at the system pressure or vacuum.
No 2D Drawing
Datasheet not yet available
The datasheet for this product has not been uploaded yet.
Frequently Asked Questions
Compatibility depends on the formulation, reagent composition and concentration, temperature and contact time. For sensitive sample paths, also evaluate adsorption, extractables and carryover.
Need to confirm your PVC tubing specification?
Share the fluid and concentration, ID/OD, length, temperature, pressure or vacuum, fittings and routing requirements so Foreach can help review the PVC tubing and connection options.
